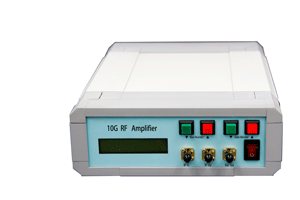

R-RF-20 model 20G Broadband microwave amplifier

Description

The R-RF-20 Broadband Microwave Amplifier is a benchtop instrument specifically designed for high-speed lithium niobate electro-optic modulators. It amplifies tiny high-speed signal levels to a higher level than driving the modulator. It goes niobium Lithium (LiNbO3) electro-optical modulator work, and having in the broadband range has a better gain flatness in the broadband range.

Features

Adjustable gain
Output amplitude up to 9V
Highly integrated
Easy to use

Applications

Microwave photonics
OFDM system
Optical fiber sensing system

performance parameters:

Parameter	Unit	Min	Typ	Max
Operating frequency range	Hz	50K	20G
Output amplitude	V	5	9
Gain range	dB			30
Output Power P1dB	dBm	21
Gain change （ripple）	dB		±1.5
Isolation	dB		-60
Noise figure	dB			7
Input / output impedance		-	50	-
Input voltage amplitude	V		0.5	1
Input return loss	dB		-10
Output return loss	dB		-10
Dimensions （L x W x H）	mm	270 x 200 x 70
Operating Voltage	V	AC 220
RF interface		K(f)-K(f)

Limit conditions

Parameter	Unit	Min	Typ	Max
Input voltage amplitude	V			1
Operating temperature	℃	-10		60
Storage temperature	℃	-40		85
humidity	%	5		90

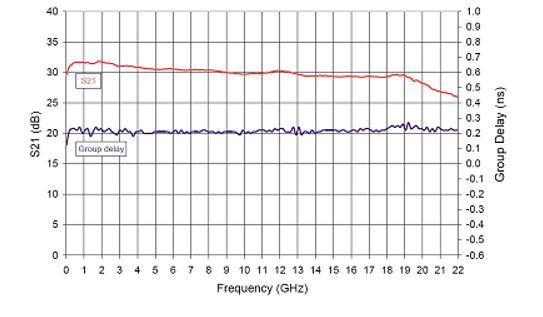

Characteristic curve

ordering information:

Microwave amplifier

Working rate ：

10---10Gbps

20---20Gbps

40---40Gbps

Output characteristics:
Empty --- standard

HO---High voltage output

RZ --RZ Signal amplification

Package form
D --- desktop
