Lithium Niobate Phase modulators - LiNbO3 modulator

Product features

 High modulating bandwidth
 Low half-wave voltage
 Low insertion loss

Product details

Lithium Niobate Phase modulators - LiNbO3 modulator

product description：

ROF-850nm Lithium Niobate Phase modulators adopts advanced proton exchange technology, with low insertion loss, high modulation bandwidth, low half-wave voltage, and other characteristics, mainly used in space optical communication system, cesium atomic time reference, spectrum broadening, interferometry, and other fields.

product feature：

 High modulating bandwidth

 Low half-wave voltage

 Low insertion loss

Application：

 Space optical communication system

 Cesium atomic time reference

 The spectral broadening

 interferometry

performance parameters：

Parameter		Symbol	Min	Typ	Max	Unit
Optical parameters
Operating wavelength		l	780	850	890	nm
Insertion loss		IL	-	3	3.5	dB
Optical return loss		ORL	-	-	-45	dB
Optical fiber	Input port		PM 800 Panda fiber
Optical fiber	output port		PM 800 Panda fiber
Optical fiber interface			FC/PC、FC/APC Or user to specify
Electrical parameters

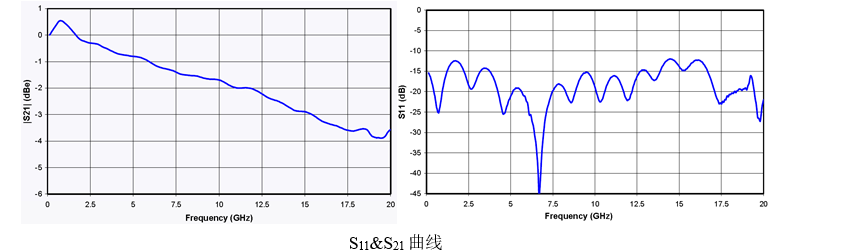

Operating bandwidth (-3db)		S₂₁		10	12	GHz
Bandwidth fluctuation		DS₂₁	-	0.5	1	dB
RF half wave voltage Vpi		Vπ@50KHz		2.5	3	V
Electric return loss		S₁₁		-12	-10	dB
RF terminal input impedance		Z_RF	50			W
Electrical interface			K(f)

Limit parameters :

Parameter	Symbol	Min	Typ	Max	Unit
Input optical power@780nm	P_in,Max	mW			10
Input RF power		dBm			28
Operating temperature	Top	ºC	-10		60
Storage temperature	Tst	ºC	-40		85
Humidity	RH	%	5		90
