Product description
The ROF-PT-10G 10Gb / s high-speed light detection module integrates 10Gb / s PIN detectors and low noise amplifiers, single-mode / multimode fiber-coupled inputs, SMA connector outputs with high gain, high sensitivity, AC coupling output, Flat gain, and other characteristics, mainly used in the high-speed optical fiber transmission system, ROF and optical fiber sensing systems and other fields.
Features
l Spectral range ： 1100~1650nm
l Data rate up to 10.7Gb/s
l InGaAs/ InP InGaAs / InP planar structure PIN detector
l High sensitivity : -19dBm
l Saturation optical power 1dBm
l Integrate preamplifier
|
l Compact structure SMA output |
l High -speed optical pulse detection
l High -speed optical fiber communication
l Microwave link
l Brillouin diffraction
|
Performance parameters |
|
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
Test condition |
||||
|
Response wavelength |
|
nm |
1100 |
|
1650 |
|
||||
|
-3dB bandwidth |
BW |
GHz |
10 |
11 |
|
from 130MHz |
||||
|
Cutoff frequency |
flow |
KHz |
|
24 |
52 |
|
||||
|
Dark current |
Id |
nA |
|
|
10 |
25ºC |
||||
|
Transimpedance |
Zt |
|
- |
2000 |
- |
p-p, f=100MHz |
||||
|
Maximum output swing |
Voutpp |
mVp-p |
- |
330 |
- |
|
||||
|
Output impedance |
Ro |
|
- |
50 |
- |
Single-ended signal |
||||
|
Optical return loss |
ORL |
dB |
35 |
|
|
|
||||
|
Saturation optical power |
Ps |
dBm |
0 |
1 |
- |
|
NRZ，ER=10dB 9.95328Gb/s,PRBS 231-1,BER=10-12 |
|||
|
Sensitivity |
S |
dBm |
|
-19 |
-18 |
25 ºC |
||||
|
|
|
|
|
-18 |
-17 |
75 ºC |
||||
|
Responsiveness |
R |
A/W |
0.8 |
0.9 |
|
=1550nm |
||||
|
Operating voltage |
Vop |
V |
|
15 |
|
|
||||
|

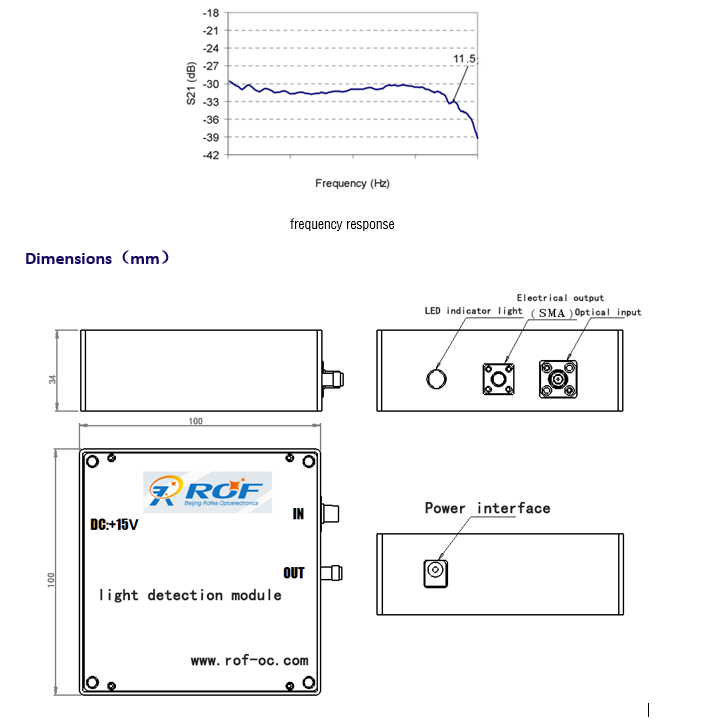

Dimensions |
LxWxH |
mm |
100 x 100 x 34 |
|||||||
|
Input fiber |
|
Single-mode /multi mode fiber |
||||||||
|
Optical fiber |
|
FC/PC、FC/APC |
||||||||
|
limit conditions |
|
parameter |
Symbol |
Unit |
Min |
Typ |
Max |
|
Input optical power |
Pin |
mW |
|
|
10 |
|
Operating voltage |
Vop |
V |
13.5 |
|
16.5 |
|
Operating temperature |
Top |
ºC |
-10 |
|
60 |
|
Storage temperature |
Tst |
ºC |
-40 |
|
85 |
|
Humidity |
RH |
% |
5 |
|
90 |

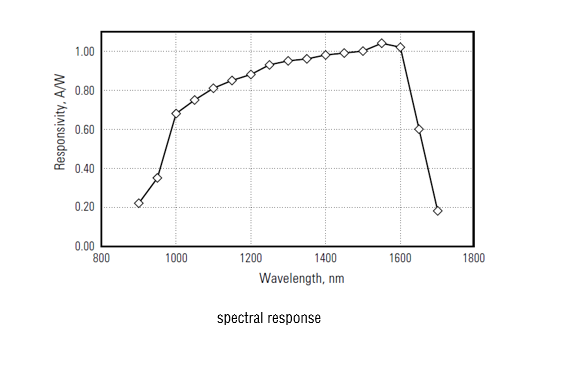

Characteristic curve
Ordering information
ROF
PT
XX
XX
XX
Detection module type：
PT ----PIN -TIA
Operating rate:
10---10 Gb/s
Pigtail fiber type
SM----single-mode fiber
MM ----multimode fiber
Connector type
FP ---FC/PC
FA ---FC/APC
